WTN series

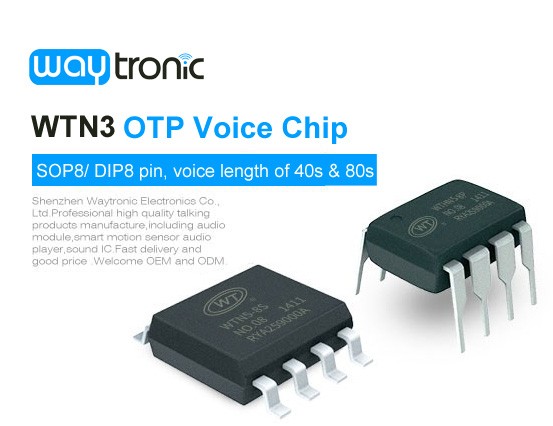

WTN3 OTP Voice Chip

Feature:

☆ Programmable one-time burn (OTP) voice chip;

☆ Voice length of the optional 40 seconds, 80 seconds (6KHz sample rate);

☆ PWM audio output mode;

☆ Integrate of the internal clock oscillator, without external shock resistance;

 OKY1 support up to 32 segments voice;

☆ Push-button control mode, pulse-counts control mode;

适用范围:
扬声器后向辐射的声波经导管倒相后,由出声口辐射到前方,与扬声器前向辐射声波进行同相叠加,它能提供比密闭式更宽的带宽,具有更高的灵敏度,较小的失真。理想状态上,低频重放频率的下限可比扬声器共振频低20%之多。这种音箱用较小箱体就能重放出丰富的低音,是应用最为广泛的类型。
上市时间: 2021 - 08 - 18
产品描述:
由出声口辐射到前方,与扬声器前向辐射声波进行同相叠加,它能提供比密闭式更宽的带宽,具有更高的灵敏度,较小的失真。理想状态上,低频重放频率的下限可比扬声器共振频低20%之多。这种音箱用较小箱体就能重放出丰富的低音,是应用最为广泛的类型。
产品说明:
OverviewWTN3 series IC is single-chip CMOS speech synthesis IC, Now there are two models WTN3 040 and WTN3 080, the length of time for 40 seconds and 80 seconds (6K sample ratio). With an Input pin and two I / O pins , With accurate internal resistance shock (+ / - 1%), so no add external shock resistance, only one PWM output, there is no need plus any component. Speech synthesis method is 4-bit/5-bit Mixed Advanced LOG-PCM, with a 9-bit PWM hardware output ,can provide better sound quality. Features(1) Programmable one-time burn (OTP) voice chip;(2) Voice length of the optional 40 seconds, 80 seconds (6KHz sample rate);(3) PWM audio output mode;(4) Integrate of the internal clock oscillator, without external shock resistance;(5) OKY1 support up to 32 segments voice;(6) Push-button co...
  • Details

Overview

WTN3 series IC is single-chip CMOS speech synthesis IC, Now there are two models WTN3 040 and WTN3 080, the length of time for 40 seconds and 80 seconds (6K sample ratio). With an Input pin and two I / O pins , With accurate internal resistance shock (+ / - 1%), so no add external shock resistance, only one PWM output, there is no need plus any component. Speech synthesis method is 4-bit/5-bit Mixed Advanced LOG-PCM, with a 9-bit PWM hardware output ,can provide better sound quality.



Features

(1) Programmable one-time burn (OTP) voice chip;

(2) Voice length of the optional 40 seconds, 80 seconds (6KHz sample rate);

(3) PWM audio output mode;

(4) Integrate of the internal clock oscillator, without external shock resistance;

(5) OKY1 support up to 32 segments voice;

(6) Push-button control mode, pulse-counts control mode;

(7) Trigger the anti-shake time: 20ms (keys);

(8) One input pin can select Edge / Level (edge / level), Hold / Unhold (hold / non-hold), Retrigger / Irretrigger (again trigger / not trigger) different trigger combinations;

(9) Support the playback of voice files of different sample rates;

(10) Wide operating voltage: 1.8V to 5.5V.

(11) Support low-voltage reset (LVR) function. (LVR = 1.5V)

(12). BUSY status output; (optional)

(A). Stop_Low pulse: stop playback when you send a low pulse.

(B). Stop_High pulse: stop playback, send a high pulse.

(C). Busy_High active: send a high level signal while playing.

(D). Busy_Low active: send a low level signal while playing. (Default)

(E) LED 3Hz flash: LED 3Hz flashes output while playback.

(F). LED 6Hz flash: LED 6Hz flashes output while playback..

(G). LED 12Hz flash: LED 12Hz flashes output while playback..

(H). LED dynamic 1/2: LED dynamic flashing according to 1/2 sound level when playing (flashes with the volume effect). (I). IO1, IO2 can be arbitrarily set time of the high and low level while playback

※ Note: LED 3Hz / 6Hz / 12Hz flash is the LED flashing frequency at the 6kHz playback speed; different playback speed, the LED flashing frequency will be different.

(13) STB functions: the "long press stop" function. Can be set between 1 - 7 seconds, while playing, long press any key to set the time to stop playing, and enter power-saving state.

(14) When in IO input state, it can set anti-shake time , short trigger (50US) ,long trigger (20MS), short trigger for MCU control applications, long trigger suit for key control occasions.



Applications

In chips applications, it can almost used in all low-cost and does not need change the voice places, such as:

Motor Vehicles (anti-theft alarm, parking radar, GPS navigation systems, electronic dog, central locking);

 smart home system, alarm clock, reminder;

special use alarm, home burglar alarm;

Medical Devices human voice prompt , treatment instrument;

Home appliances (cooker, rice cookers, microwave ovens);

entertainment devices (game consoles, amusement machine);

Learning Model (Early education machine, children's audio books);

Intelligent Transport Equipment (toll stations, car parks);

communications equipment (telephone switches, telephones);

Industrial control areas (elevators, industrial equipment);

Advanced toys.
