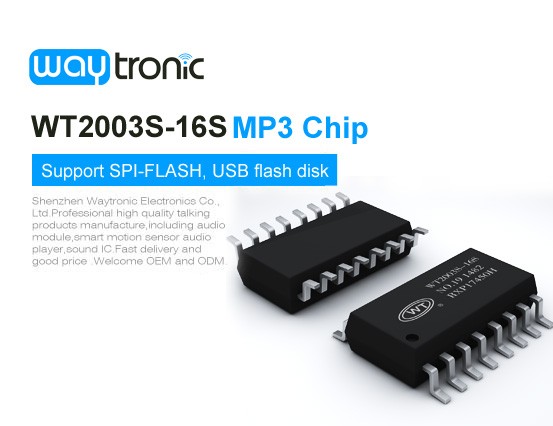

WT2003S-16S is a kind of new MP3 chip with powerful function and high quality, satisfying customer’s needs from many aspects. Support standard asynchronous serial communication. Baud rate is 9600, flexible control method. Also support SPI-Flash as memory. It has many play modes: file index play, inter-cut play, single loop play and loop playback. 32 levels volume is adjustable. Stereo sound output. Mass memory, supporting 128M Flash drive maximally.
1.Features:
☆Built in 48MHZ crystal oscillator
☆Support MP3 audio decoding
☆Built in watchdog
☆Four multifunctional 16 bits timer
☆One full-duplex standard UART serial interface
☆Infrared remote control decoder
☆SD card interface
☆Support full-speed USB 2.0
☆Common I/O port can develop many kinds of customized functions
Pin Description:
![WT2003S MP3 Chip]( "WT2003S MP3 Chip")
![WT2003S MP3 Chip]( "WT2003S MP3 Chip")
Remark: Chip only has one VDD/LDO power input port.
The pin introduction above is just about some hardware interfaces. For the detailed functions, need software development.
Specification:
![WT2003S MP3 Chip]( "WT2003S MP3 Chip")
Electric Parameter:
![WT2003S MP3 Chip]( "WT2003S MP3 Chip")
2.Part 2 Simulated U Disk version
This part mainly introduces current simulated U disk features.
Simulated U Disk version features
☆Support SPI-FLASH, not support micro SD card.
☆Standard UART communication interface. Can achieve special address play, special inter-cut address play, volume levels, next/ previous, play/ pause, cycle model, etc.
☆Default bit rate is 9600.
☆Not play by default with power on.
☆BUSY status indication, high level when playing.
☆Available to connect computer via USB interface. Download the audio of computer into FLASH simulated removable drive(simulated U disk) through USB interface (XP system, WIN7 system, WIN8 system).
☆Support mp3 audio format, 8KBPS~128KBPS.
☆SPI-FLASH support 128M maximally.
☆DAC double channels output.
☆32 levels volume.
☆About more information, please contact to our online customer service staff.
3.Part 3 Micro SD card version
This part mainly introduces current micro SD card function about this chip.
Micro SD card version features
☆Support MP3 audio file, 8KBPS~320KBPS, beautiful voice.
☆Support sample rate 8~44.1KHz WAV audio file.
☆Micro SD card or U disk as storage; change audio files freely, maximally support 32G micro SD card and 32G U disk.
☆Available to freely change the audio files of SD card through USB interface (XP system, WIN7 system, WIN8 system).
☆Simultaneously support key control and UART serial communication, universal standard interface protocol, more flexible to control.
☆Support inter-cut play between different memories.
☆Support combination play.
☆Support index in folder and specify file name to play.
☆32 levels volume. DAC double channel output.
☆DC 5V power supply.
☆About more information, please contact to our online customer service staff.
4.Application:
Eg. Voice alarm prompt: when oil tank is leaky, if there is just alarm sound, people cannot instantly know where the failure occurs. So need technical staff to check first, then they can know what’s the problem.
But if the oil tank alarm can tell what’s the problem, that would be much better, right?
Our company can provide you oil tank voice solution to you. According to different gas stations and petrochemical factories, audio content can be changed.
