WT2000 series

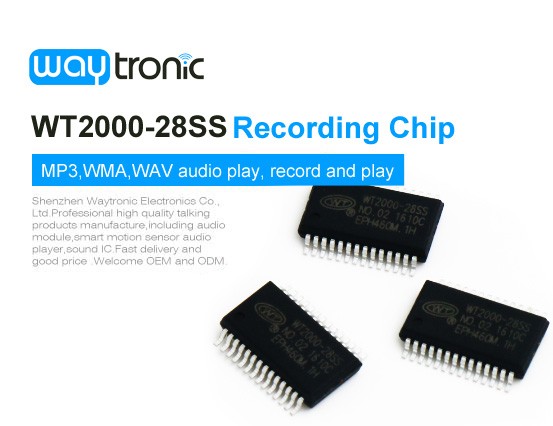

WT2000-28SS Programmable Audio Recording Chip

Feature:

☆MC5-51 command system compatibility.

☆Max support 48MHz system clock.

☆Support MP3, WMA, WAV decoding.

☆Support MP3 encoding.

☆Built in RC oscillator and watchdog timer

☆One full duplex UART interface

☆Two SPI interface

适用范围:

上市时间: 2021 - 08 - 18

产品描述:

产品说明:

Product OverviewWT2000-28SS MP3 programmable audio recording chip, supports WAV, WMA, MP3 audio decoding. Support SPI-FLASH, micro SD card and USB flash disk as storage medium. It has USB interface and has USB sound card function. Can replace audio on PC. Features☆MC5-51 command system compatibility.☆Max support 48MHz system clock.☆Support MP3, WMA, WAV decoding.☆Support MP3 encoding.☆Two multifunctional 8 bit timer, support catching and PWM mode☆Two multifunctional 16bit timer, support catching and PWM mode☆Built in RC oscillator and watchdog timer☆One full duplex UART interface☆Two SPI interface☆One full speed USB 2.0 transceiver☆48MHz phase-locked loop clock generator☆9 circuit 10bit ADC☆Automatic power-on reset ☆Built in two-channel LD0 5V---1.2V, 5V---3.3...

Download

More Details

Details
产品描述
安装视频
成功案例
相关产品

Product Overview

WT2000-28SS MP3 programmable audio recording chip, supports WAV, WMA, MP3 audio decoding. Support SPI-FLASH, micro SD card and USB flash disk as storage medium. It has USB interface and has USB sound card function. Can replace audio on PC.

Features

☆MC5-51 command system compatibility.

☆Max support 48MHz system clock.

☆Support MP3, WMA, WAV decoding.

☆Support MP3 encoding.

☆Two multifunctional 8 bit timer, support catching and PWM mode

☆Two multifunctional 16bit timer, support catching and PWM mode

☆Built in RC oscillator and watchdog timer

☆One full duplex UART interface

☆Two SPI interface

☆One full speed USB 2.0 transceiver

☆48MHz phase-locked loop clock generator

☆9 circuit 10bit ADC

☆Automatic power-on reset

☆Built in two-channel LD0 5V---1.2V, 5V---3.3V.

WT2000-28SS chip functional diagram:

WT2000-28SS Programmable Audio Recording Chip

Pin Description:

WT2000-28SS Programmable Audio Recording Chip
